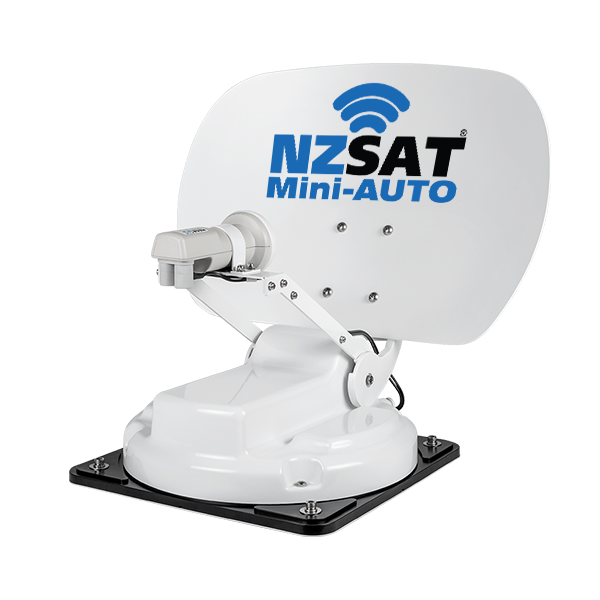

NZSAT Mini-Auto Fully Automatic Satellte Dish

Our latest addition to our NZSAT lineup.

The NZSAT Mini-Auto is a fully automatic RV satellite dish designed for New Zealand.

It features a high gain 46cm dish that typically aligns within 2 minutes, a single coax cable solution for easy installation and maintenance, auto shut down on vehicle startup (Optional, extra wiring required), 12V operation with low power consumption, and lightweight and low-profile design.

This is an excellent option if you have limited space or want the best value for money automatic dish.

• 3 Year Warranty
• 46cm High Gain Off-Set-dish
• LNB type: LO Freq 10.75
• DVB-S2 MPEG4 Ready
• Frequency band: Ku-band
• Single Coax Cable solution
• Auto Shut Down on vehicle startup
• Power supply: DC 12 Volt, 5A Recommended
• Power Consumption (while the dish is aligning) 24watt
• Power Consumption (dish locked on to satellite) 1.2watt

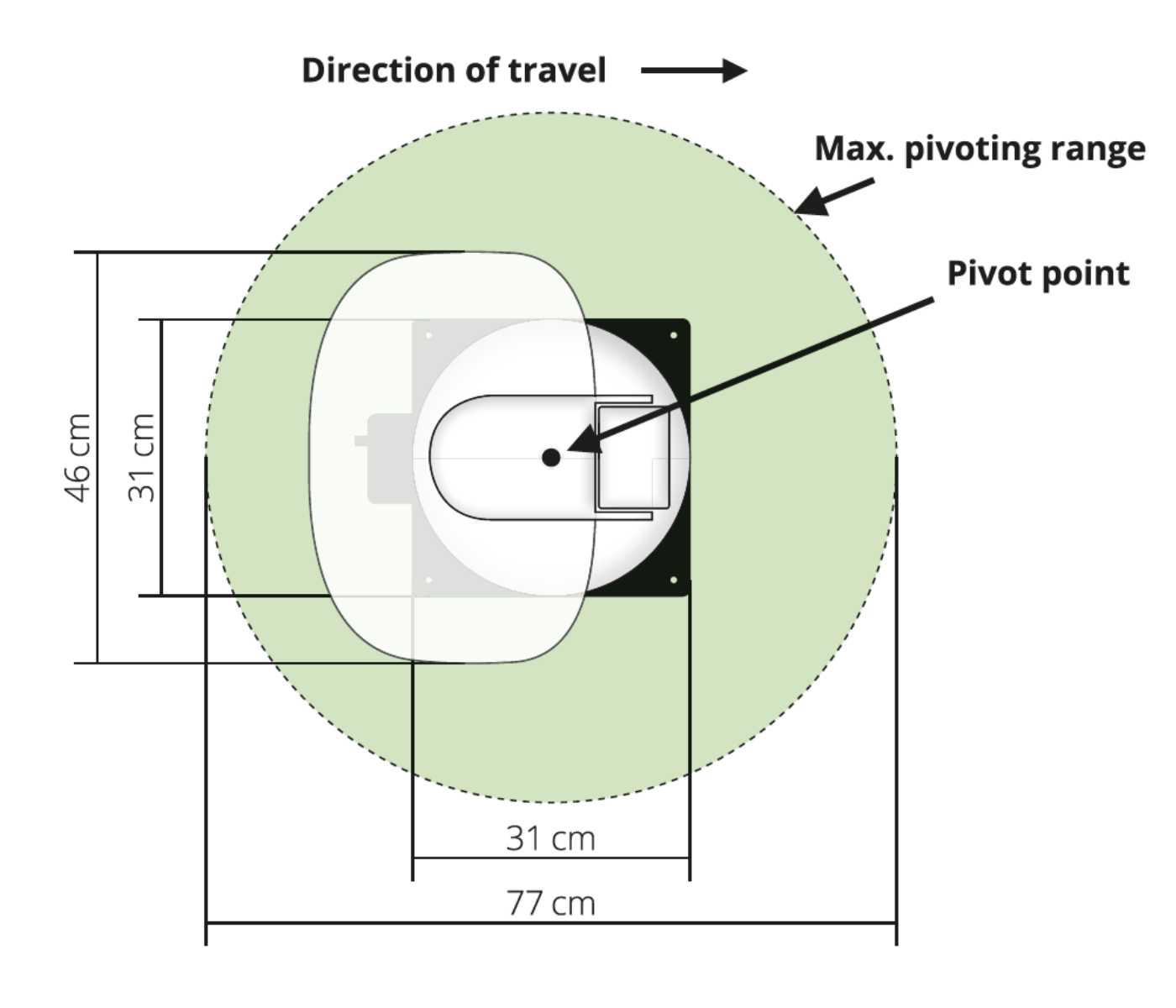

• Dish reflector size: 460 x 320 mm (W/H)
• Unit height when closed 170mm
• Unit weight: 5kg
• Temperature range: -25° C to +70° C
• Polarization: V/H
• Elevation (inclination): 15° - 62
• Azimuth (rotation): 360
• 2-axes DC motor
• Control unit with Bluetooth® module (Firmware updates via a mobile device)
• Free app for iOS and Android
