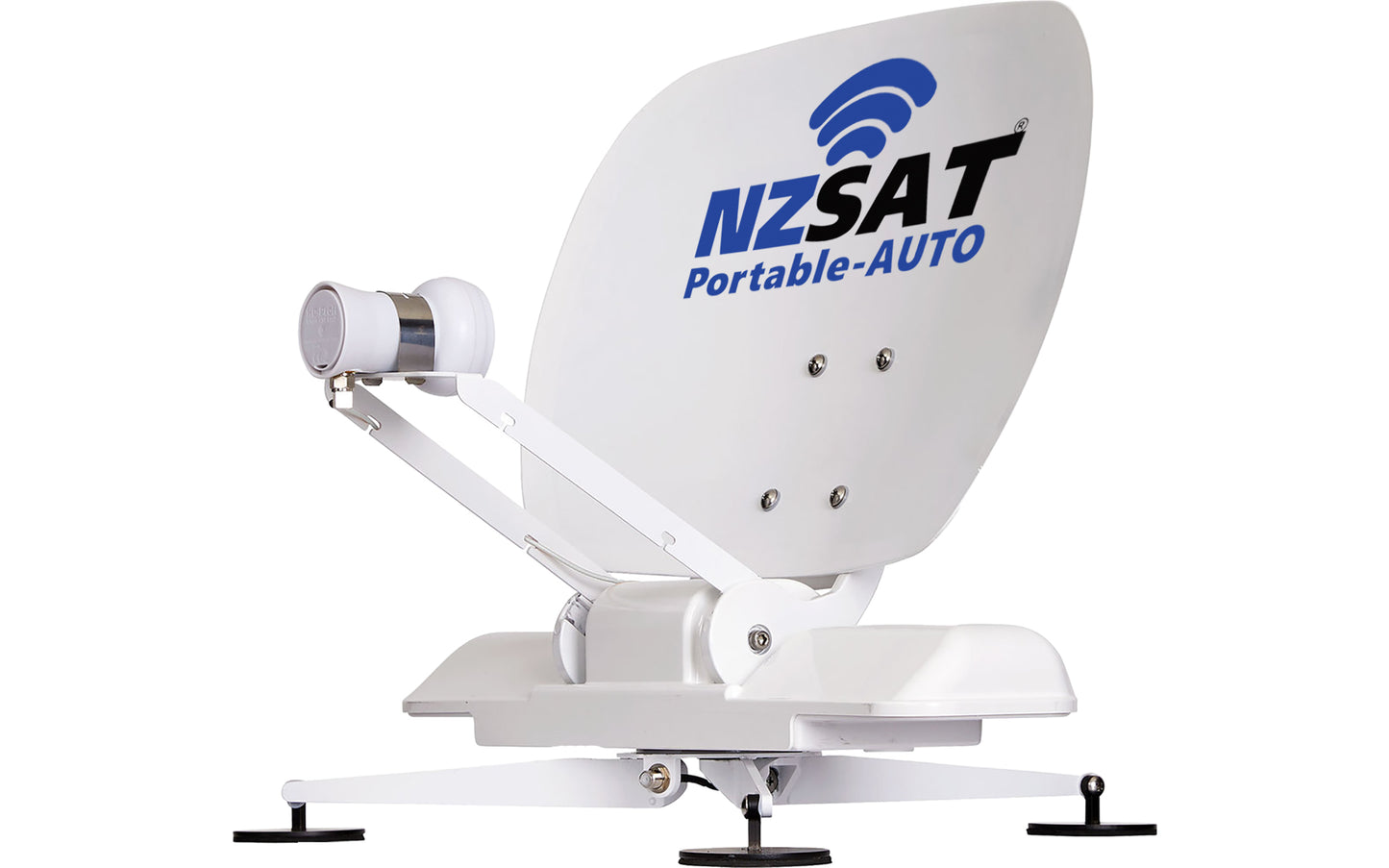

NZSAT Portable-AUTO

One of our latest additions to our NZSAT lineup.

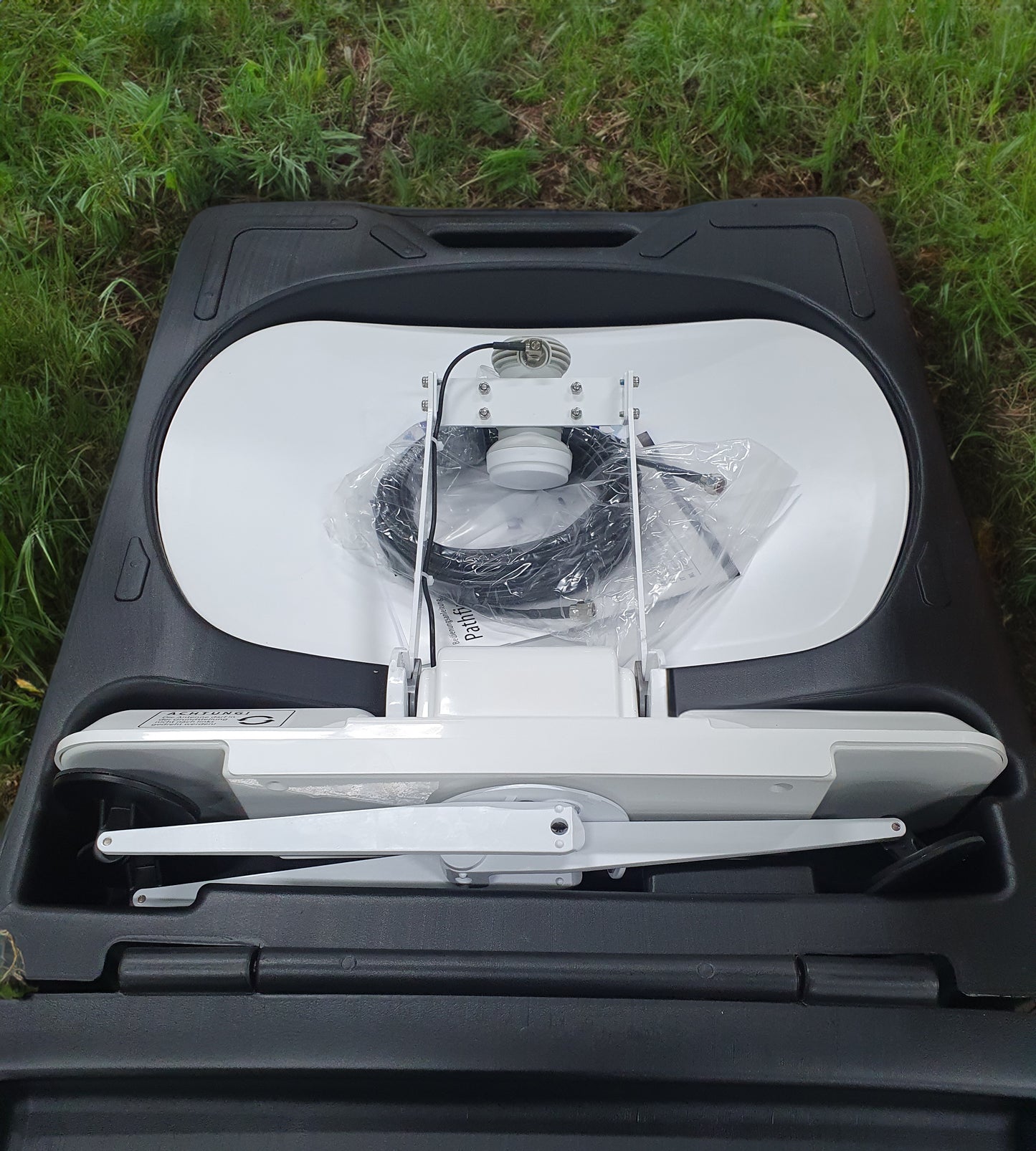

The NZSAT Portable-AUTO is a fully automatic RV satellite dish designed for New Zealand. A hard case is supplied for protection when transporting the unit.

It features a high gain 46cm dish that typically aligns within 5 minutes, a single coax cable solution for ease of use, and Power supplied by TV or Decoder (No additional power supply needed).

This option is excellent if you want the benefits of an automatic dish but don't want to have one installed on your roof.

Basic Setup instructions

1. Remove the unit from the carry box.
2. Unfold legs and LNB arm.
3. Plug one end of the cable into the TV/Decoder and the other into the bottom of the Portable-AUTO.
4. Unlock motor lever.
5. Turn on the TV/Decoder.
6. The dish can take 5 minutes to lock on. (This is due to the unit having low power consumption)

Please read the instructions supplied for detailed setup.

• 1-Year Warranty
• Dish type: Off-Set-dish
• LNB type: LO Freq 10.75
• Frequency band: Ku-band
• Input frequency range: 10.7 GHz - 12.75 GHz
• Signal amplification: 31 dBi@ 12.7 GHz
• Minimum EIRP (footprint): 51 dBW
• Elevation (inclination): 22° - 48°
• Azimuth (rotation): 360
• 1.5-axes DC motor
• Temperature range: -20° C to +70° C
• Power supply: Supplied by TV or Decoder (No additional power supply)
• Weight: 3.4 kg
• Dish size: 460 x 320 mm (W/H)
