NZSAT Smart-Panel Fully Automatic Satellite Dish

One of our latest additions to our NZSAT lineup.

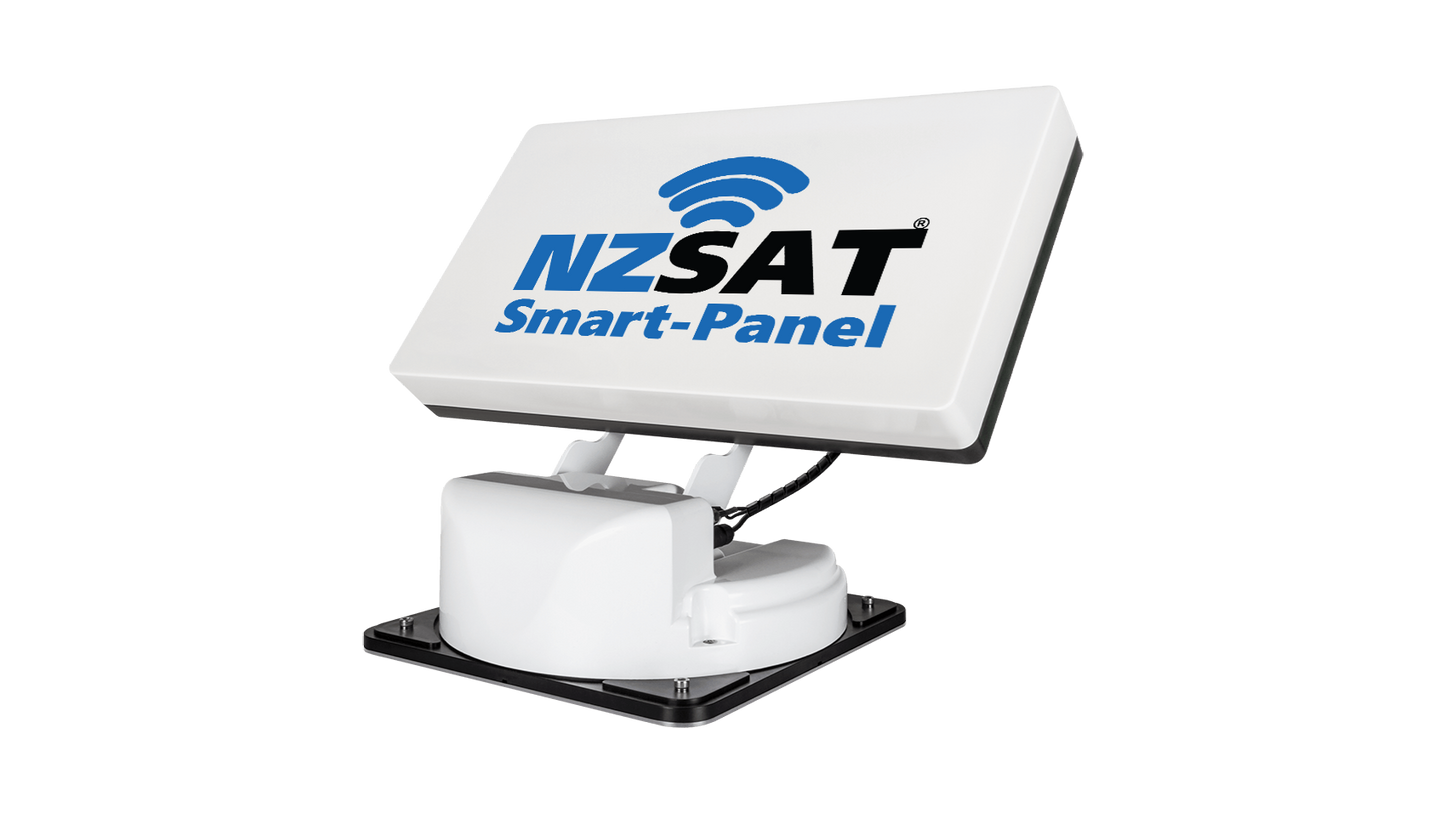

The NZSAT Smart-panel is a fully automatic RV satellite dish designed for New Zealand.

It features a high gain Waveguide Array Dish that typically aligns within 1 minute, a single coax cable solution for easy installation and maintenance, auto shut down on vehicle startup (Optional, extra wiring required), 12V operation with low power consumption, and lightweight and extra low-profile design.

This is an excellent option if you have limited height or want the best value for money automatic dish.

•     3 Year Warranty
•     Dish type: Flat antenna (Waveguide Array Dish)
•     LNB type: LO Freq 10.75
•     Maximum number of participants: 1
•     Frequency band: Ku-band
•     Input frequency range: 10.7 GHz - 12.75 GHz
•     Polarization: V/H
•     Signal amplification: 33 dBi@ 12.7 GHz
•     Minimum EIRP (footprint): 49 dBW
•     Elevation (inclination): 0° - 90
•     Azimuth (rotation): 360
•     Temperature range: -25° C to +70° C
•     Power supply: DC 12 Volt
•     Dish size: 525 x 290 mm (W/H)
•     Unit size: 525 x 145 x 480 mm (W/H/D)
•     Unit weight: 7 kg
